Notification System

Kadoa’s notification system allows you to receive alerts about workflow events and data changes. You can configure notifications at different levels and choose from multiple delivery channels.

​
Settings Levels

Notifications can be configured at two levels:

​
Workspace-Level Settings

Apply to all workflows in your workspace when workflow specific notifications settings does not exist.

​
Workflow-Level Settings

Workflow-specific settings apply only to a particular workflow.

​
Settings Hierarchy

When multiple settings exist for the same event type, the system follows this precedence: When both levels exist, workflow-level settings take precedence over workspace-level. Important: You can have only one setting per event type per level (workflow or workspace). To add more channels to an existing setting, use a PUT request to update the setting.

​
Supported Event Types

​
Workflow Events

  • workflow_data_change - When monitored data changes are detected
  • workflow_sample_finished - When sample data processing completes
  • workflow_finished - When a workflow completes successfully
  • workflow_failed - When a workflow fails during execution
  • workflow_validation_anomaly_change - When new data validation issues detected
More event types are coming soon via API and UI.

​
API Configuration

​
Step 1: Create Notification Channels

First, create the channels you want to use for notifications. See Webhooks and WebSockets for channel creation examples.

​
Step 2: Subscribe to Events

Subscribe to events by making a POST request to /v5/notifications/settings:

​
Workspace-Level Subscription

// POST /v5/notifications/settings
{
  "eventType": "workflow_finished",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["<channel-id>"]
}

​
Workflow-Level Subscription

// POST /v5/notifications/settings
{
  "workflowId": "<your-workflow-id>",
  "eventType": "workflow_data_change",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["<channel-id>"]
}

​
Updating Existing Settings

To add more channels to an existing setting, use a PUT request:
// PUT /v5/notifications/settings/<setting-id>
{
  "channelIds": ["existing-channel-id", "new-channel-id"]
}

​
Event Types Explained

​
workflow_data_change

Triggered when data changes are detected in monitored workflows. Configuration:
{
  "workflowId": "<workflow-id>",
  "eventType": "workflow_data_change",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["webhook-channel-id", "websocket-channel-id"]
}

​
workflow_sample_finished

Triggered when sample data processing completes. Configuration:
{
  "eventType": "workflow_sample_finished",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["email-channel-id"]
}

​
workflow_finished

Triggered when a workflow completes successfully. Configuration:
{
  "eventType": "workflow_finished",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["slack-channel-id", "email-channel-id"]
}

​
UI Configuration

You can configure notifications through the UI:
  1. Workspace-level settings - Configure in team/user workspace settings

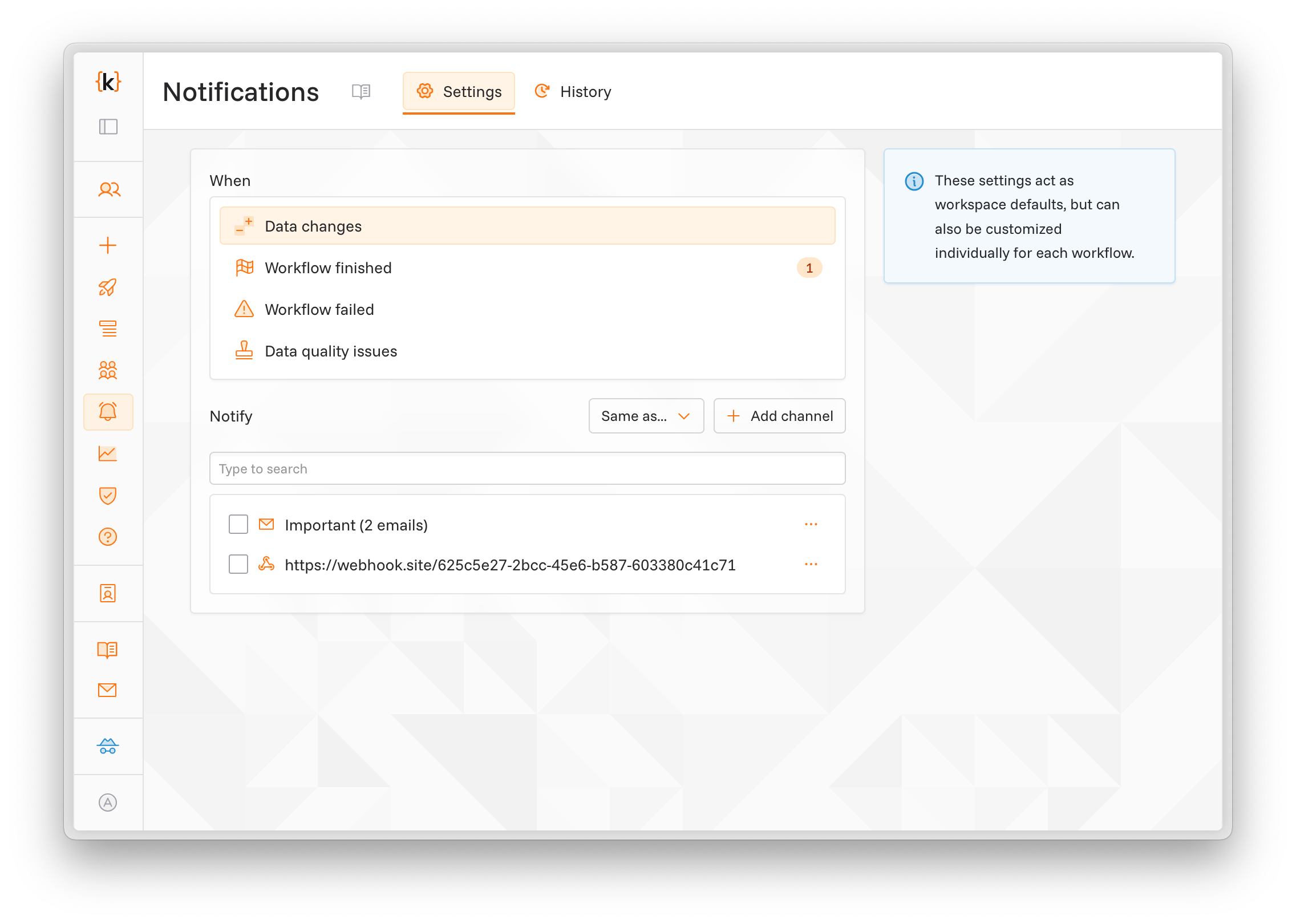

Screenshot of workspace notification settings
  1. Workflow-level settings - Configure in individual workflow settings

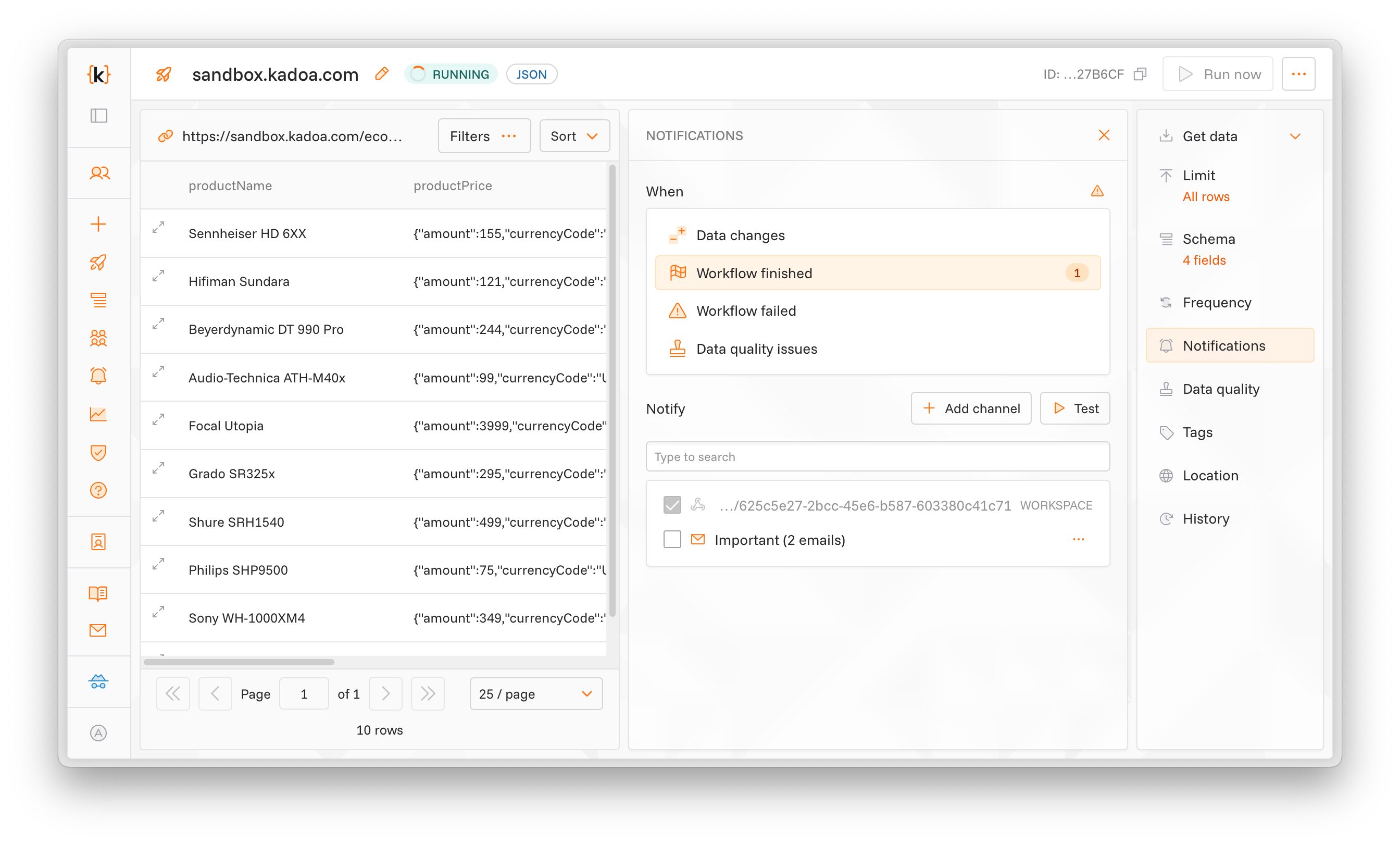

Screenshot of workflow notification settings

​
Testing Notifications

After setting up notifications, you can test your settings using the test endpoint. This allows you to verify that your channels are working correctly and that notifications will be delivered as expected.

​
Test Endpoint

Use the test endpoint to send a mock notification event:
// POST /v5/notifications/test
{
  "eventType": "workflow_finished",
  "workflowId": "optional-workflow-id"
}

​
Testing in the UI

You can also test notifications directly from the UI:
  1. Navigate to the Notifications page
  2. Select an event type
  3. Configure your channels
  4. Click the “Test” button to send a test notification

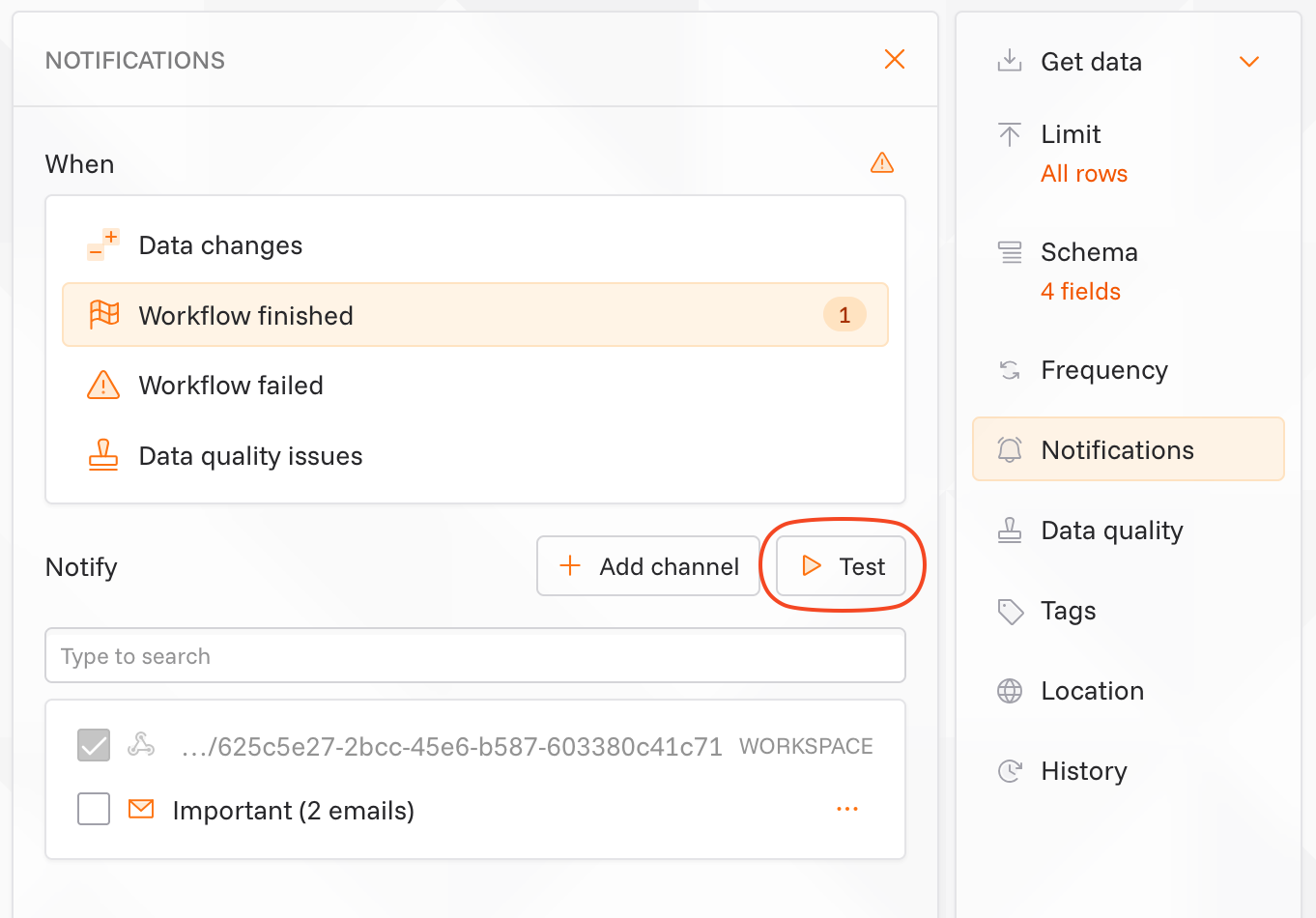

Screenshot of test notifications button The test will send a mock event to all configured channels for that event type.

​
Complete Example

Here’s a complete example of setting up notifications for different use cases:

​
Step 1: Create Channels

// POST /v5/notifications/channels
{
  "channelType": "WEBHOOK",
  "name": "Data Changes Webhook",
  "config": {
    "webhookUrl": "https://your-endpoint.com/webhook",
    "httpMethod": "POST"
  }
}

​
Step 2: Subscribe to Events

// POST /v5/notifications/settings
// Workspace-level: Notify on all workflow completions
{
  "eventType": "workflow_finished",
  "eventConfiguration": {},
  "enabled": true,
  "channelIds": ["email-channel-456"]
}

​
Best Practices

​
1. Start with Workflow-Level Settings

For workflows, create specific settings with immediate notifications and multiple channels.

​
2. Choose the Right Channels

  • Email - For team notifications and alerts
  • Webhooks - For integration with external systems
  • WebSockets - For receiving fastest alerts

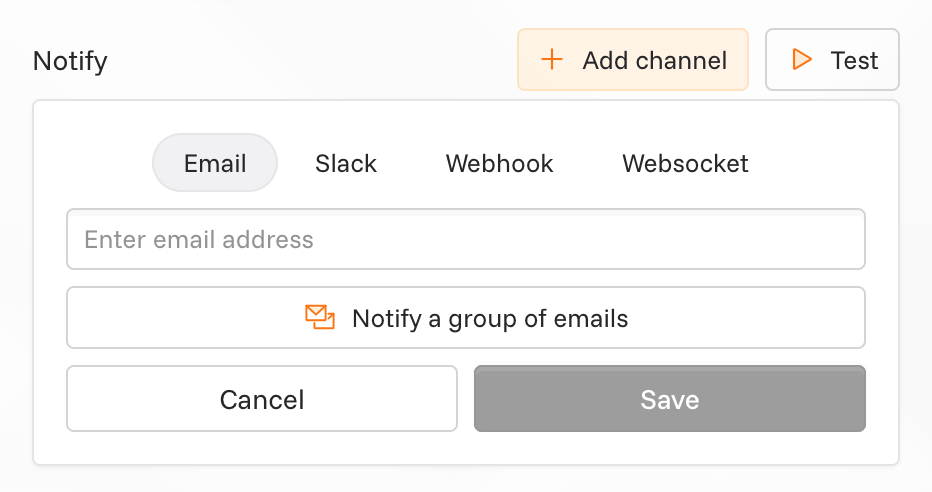

Screenshot of notification channel selection

​
Troubleshooting

​
Notifications Not Being Sent

  1. Check that the settings are enabled
  2. Verify that the event type is supported
  3. Ensure the linked channels are valid

​
Testing Your Configuration

If notifications aren’t working as expected, use the test endpoint to verify your setup:
  1. Test individual channels - Use the test endpoint to send a mock event
  2. Check channel settings - Verify webhook URLs, email addresses, etc.
  3. Review notification logs - Check the logs to see if events are being processed
  4. Verify authentication - Ensure API keys and credentials are correct

​
Common Issues

  • Webhook timeouts - Ensure your webhook endpoint responds quickly
  • Email delivery - Check spam folders and email server settings
  • Invalid event types - Use only supported event types from the API
  • Missing permissions - Ensure your API key has the required permissions
